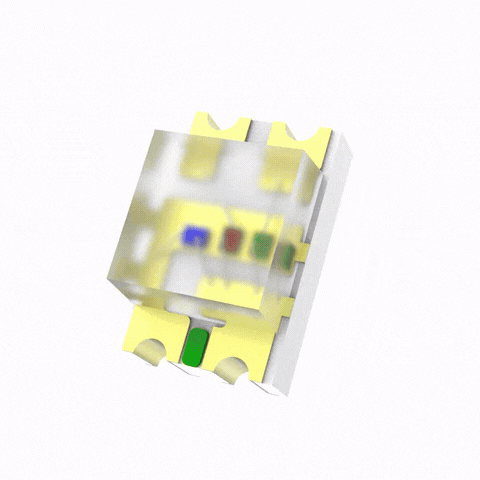

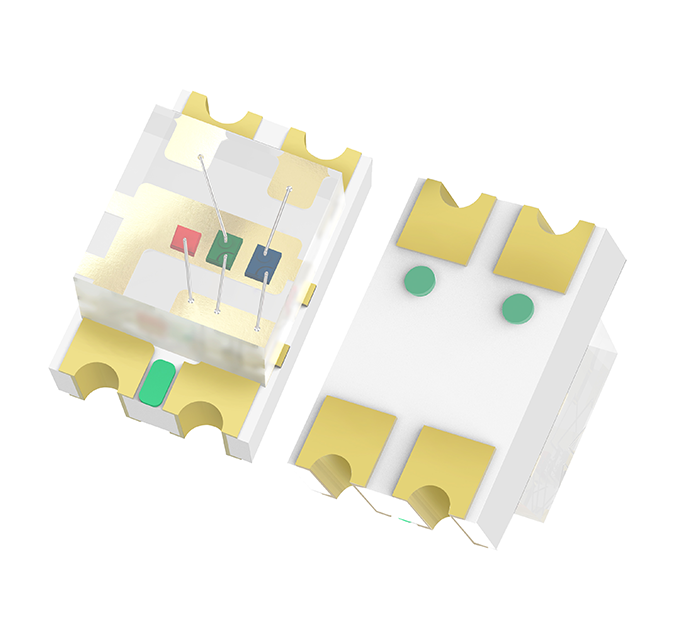

HQG 0805(2013)-1.1T Bi-Color & RGB Color LED | 2.0×1.25×1.1mm 0805 LED Dimensions

HQG 0805(2013)-1.1T Bi-Color & RGB Color LED | 2.0×1.25×1.1mm 0805 LED Dimensions

Specifications:

Place of Origin: China (mainland)
Brand Name: HQG
Certification: ISO9001:2008, ROHS
Part number：0805(2013)-1.1T Bi-Color & RGB Color LED
Package Size：2.0*1.25*1.1mm

Color:

Bi-Color

RGB Color

Inquiry

Datasheet

Description Model Table Cooperation Case Packaging Features Application

Description

0805(2013)-1.1T Bi-Color & RGB Color LED, 0805 LED Dimensions 2.0×1.25×1.1mm

HQG 0805(2013)-1.1TBi-Color Full-Color Series SMD LED enables efficient space integration with 2.0×1.25×1.1mm precision dimensions. Featuring advanced eutectic packaging technology for dual-color integrated design, it supports multi-combination dynamic displays such as red-green and blue-yellow. With ultra-high brightness of ≥5000mcd and NTSC ≥90% wide color gamut coverage, it is perfectly suited for high-end applications including communication base station indicators, smart wearable device backlighting, and digital product status displays. Built-in PWM dimming control chip enables 100-1000Hz wide-frequency dimming and 16-level grayscale adjustment, combined with ≤3.0V low-power design to meet long battery life requirements of portable devices. Chip-level optical lens design ensures ±120° ultra-wide angle uniform light emission with color purity deviation ≤2%, providing stable and precise dynamic lighting solutions for your products.

Model Table

HQG 0805(2013)-1.1T Bi-Color & RGB Color LED | 2.0×1.25×1.1mm High-Brightness Surface Mount LED

Classification	Series	Size (mm)	P/N	Color	Typ. IV (mcd)	Wld (nm) X,Y	VF (V)	IF (mA)
SMD-CHIP	0805(2013)-1.1T Bi-Color & RGB Color LED	2.01.251.1mm	HQ17-2303BGRC	Red	120	620-630	1.8-2.4	20
SMD-CHIP				Green	650	515-530	2.8-3.6
SMD-CHIP				Blue	120	460-475	2.8-3.6
SMD-CHIP			HQ17-2202RGC	Red	160	620-630	1.8-2.6	20
SMD-CHIP			HQ17-2202RGC	Blue	650	515-530	2.8-3.6	20

Cooperation Case

Backed by over 20 years of experience, there's nothing our lighting experts haven't seen. Find your specific application below to explore where our extensive lineup of LEDs fit into your product.

Smart speaker breathing light with -40℃~105℃ high temperature resistance

Packaging

Ultra-miniature 0805(2013)-1.1T Bi-Color & RGB Color LED industry standard SMD LED package, supplied in tape and reel.

Type	Dimensions (L×W×H)	Empty Box Weight	Capacity
Inner Box	24cm × 20cm × 13cm	0.15kg	Chip LED: Can Hold 10 Tape & Reel Packaging A Box PLCC LED: Can Hold 5-6 Tape & Reel Packaging A Box
Outer Carton	67cm × 26cm × 22cm	0.55kg	Holds 5 Inner Boxs
Medium Outer Carton	40cm × 26cm × 23cm	0.3kg	Holds 3 Inner Boxs
Export Order Box	24cm × 20cm × 9cm	0.1kg	6-7 Tape & Reel

Features

Lens

Water-clear flat molding
Package

Compliant with EIA standard packaging
Certification and Attributes

RoHS compliant, green environmental-friendly product
Moisture Sensitivity Level

Level 3
Compatibility

Suitable for Surface Mount Technology (SMT) assembly and soldering processes
