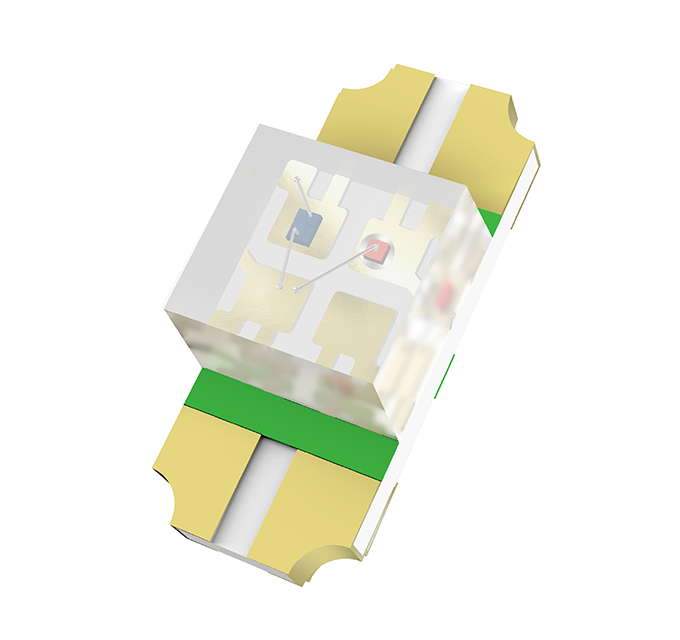

Reverse Mount LED | 1205(3213)-1.1T Reverse Tape Bi-Color & RGB Color LED

Reverse Mount LED | 1205(3213)-1.1T Reverse Tape Bi-Color & RGB Color LED

Specifications:

Place of Origin: China (mainland)
Brand Name: HQG
Certification: ISO9001:2008, ROHS
Part number：1205(3213)-1.1T Reverse Tape Bi-Color & RGB Color LED
Package Size：3.2*1.25*1.1mm

Color:

Bi-Color

RGB Color

Inquiry

Datasheet

Description Model Table Cooperation Case Packaging Features Application

Description

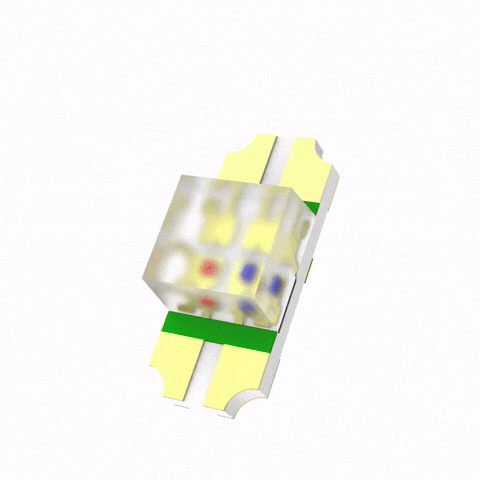

Reverse Mount LED | Bi-Color LED RGB SMD 3.2x1.25x1.1mm

1205(3213)-1.1T Reverse Tape Bi-Color & RGB Color LED Series features a 3.2×1.25×1.1mm ultra-thin package with integrated Reverse Tape structure, adapting to high-speed SMT automated production lines with high mounting efficiency. Equipped with tri-color (Red/Green/Blue) independent driver chips to meet dynamic color requirements of smart home ambient lighting and decorative lighting systems. Suitable for smart speaker indicators, whole-house smart control panels, holiday decorative light strings, commercial space ambient lighting and other scenarios. Compatible with 0402-5050 full-series SMT processes, packaged in anti-static tape, it passes -40℃~+85℃ wide temperature testing and 1000-hour high-temperature high-humidity aging test with MTBF over 50,000 hours, complying with RoHS 2.0 environmental standards and REACH regulations.

Model Table

1205(3213)-1.1T Reverse Tape Bi-Color & RGB Color LED | 3.2×1.25×1.1mm Smart Home Decorative Lighting LED

Classification	Series	Size (mm)	P/N	Color	Typ. IV (mcd)	Wld (nm) X,Y	VF (V)	IF (mA)
SMD-CHIP	1205(3213)-1.1T Reverse Tape Bi-Color & RGB Color LED	3.21.251.1mm	HQ25-23F3BGRC	Red	35	620-630	1.8-2.2	5
SMD-CHIP				Green	280	515-530	2.5-3.1
SMD-CHIP				Blue	35	460-475	2.5-3.1
SMD-CHIP			HQ25-22F2RGC	Red	35	620-630	1.8-2.2	5
SMD-CHIP			HQ25-22F2RGC	Blue	280	515-530	2.5-3.1	5

Cooperation Case

Backed by over 20 years of experience, there's nothing our lighting experts haven't seen. Find your specific application below to explore where our extensive lineup of LEDs fit into your product.

Yacht interior light with marine-grade waterproofing

Packaging

Ultra-miniature 1205(3213)-1.1T Reverse Tape Bi-Color & RGB Color LED industry standard SMD LED package, supplied in tape and reel.

Type	Dimensions (L×W×H)	Empty Box Weight	Capacity
Inner Box	24cm × 20cm × 13cm	0.15kg	Chip LED: Can Hold 10 Tape & Reel Packaging A Box PLCC LED: Can Hold 5-6 Tape & Reel Packaging A Box
Outer Carton	67cm × 26cm × 22cm	0.55kg	Holds 5 Inner Boxs
Medium Outer Carton	40cm × 26cm × 23cm	0.3kg	Holds 3 Inner Boxs
Export Order Box	24cm × 20cm × 9cm	0.1kg	6-7 Tape & Reel

Features

Lens

Water-clear flat molding
Package

Compliant with EIA standard packaging
Certification and Attributes

RoHS compliant, green environmental-friendly product
Moisture Sensitivity Level

Level 3
Compatibility

Suitable for Surface Mount Technology (SMT) assembly and soldering processes
