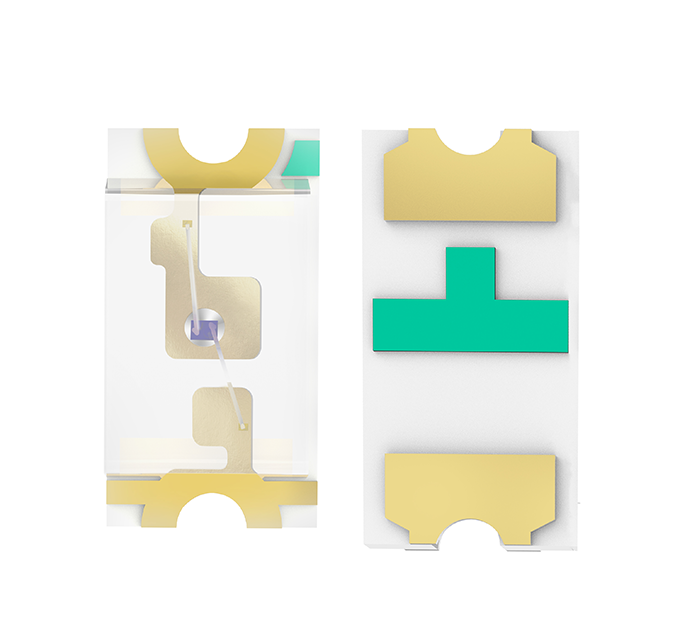

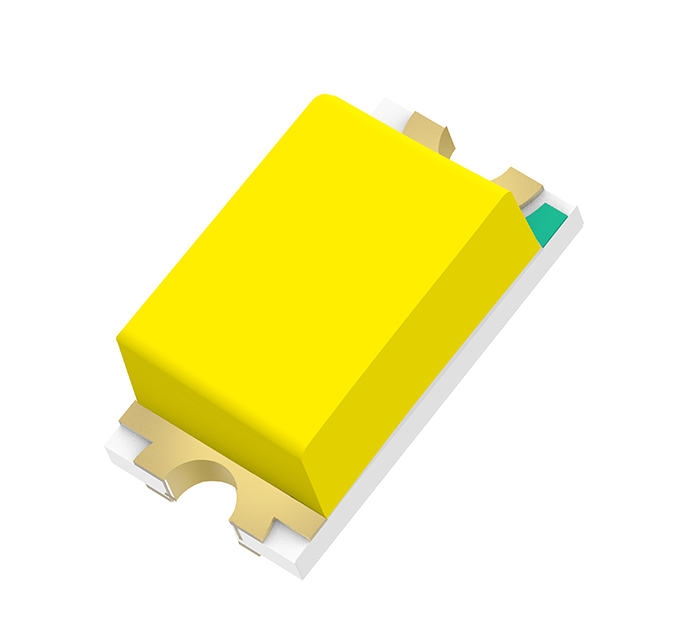

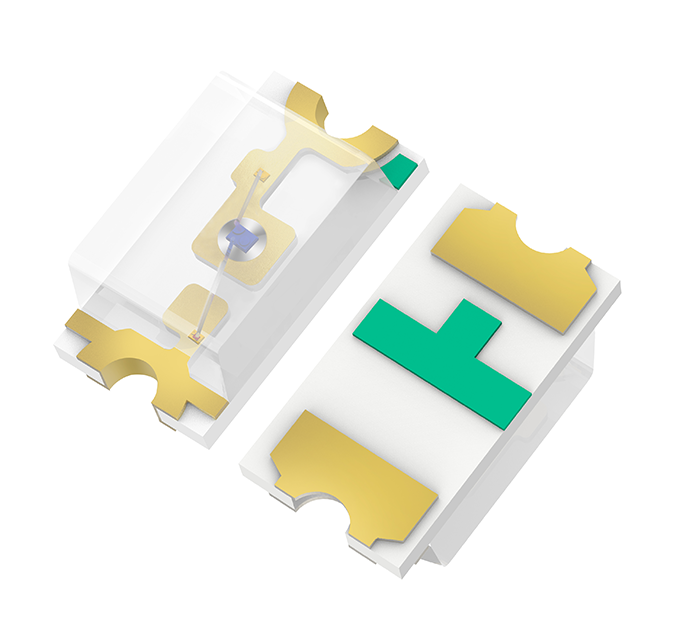

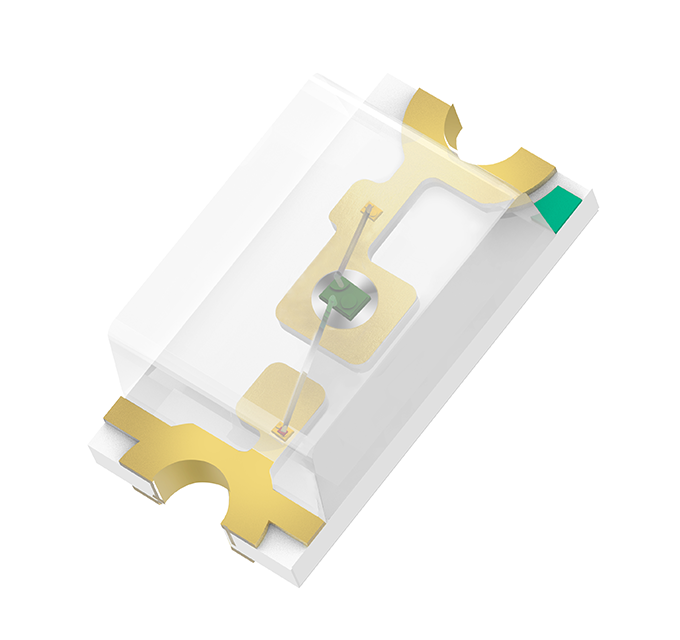

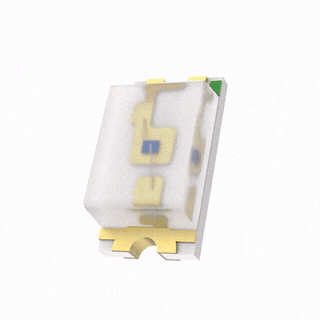

HQG 0603(1608)-0.6T Series SMD LED 0603 | 1.6×0.8×0.60mm Surface Mount LED

HQG 0603(1608)-0.6T Series SMD LED 0603 | 1.6×0.8×0.60mm Surface Mount LED

Specifications:

Place of Origin: China (mainland)
Brand Name: HQG
Certification: ISO9001:2008, ROHS
Part number：0603(1608)-0.6T
Package Size：1.6*0.8*0.55mm

Color:

Red

Orange

Yellow

Yellow Green

Green

Blue

White

Inquiry

Datasheet

Description Model Table Cooperation Case Packaging Features Application

Description

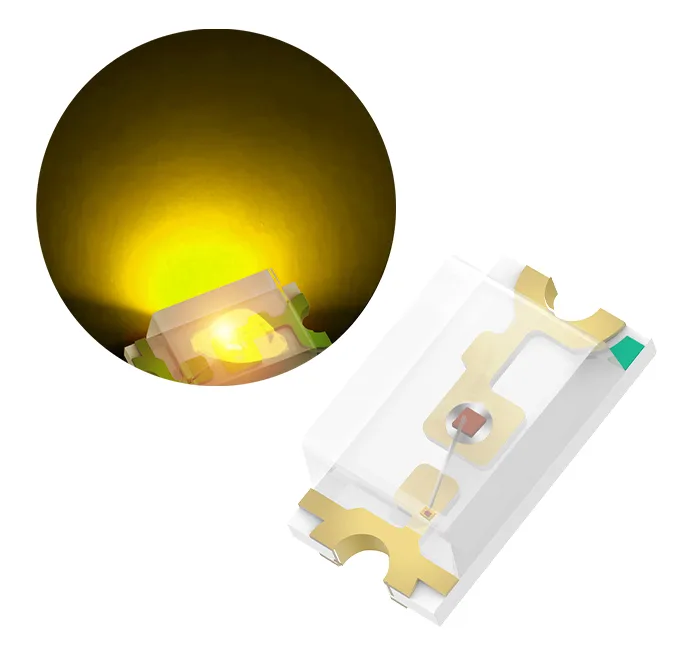

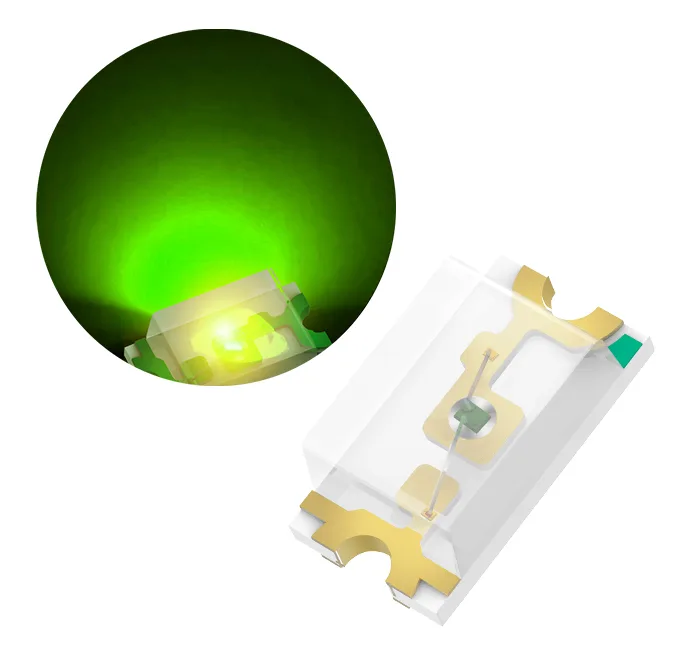

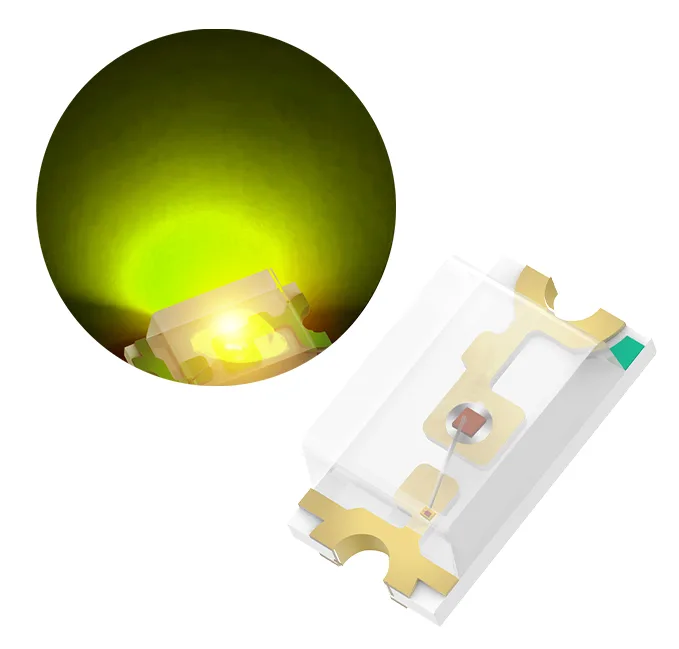

HQG 0603(1608)-0.6T Series LED 0603

HQG 0603(1608)-0.6T Series LED features an ultra-thin 0.60mm height for miniaturized design, with a top-emitting chip solution supporting multiple single-color options (Red/Orange/Yellow/Yellow Green/Green/Blue/White), perfectly suited for indicator light needs in IoT devices, control panels, and displays. As a high-performance SMD LED 0603, it is significantly smaller than traditional lead frame components, enabling reduced circuit board size, higher packing density, storage space savings, and overall equipment miniaturization. Its lightweight design makes it ideal for miniature applications, providing stable and reliable lighting support for consumer electronics, smart hardware, and other fields.

Model Table

HQG 0603(1608)-0.6T Low-Profile Series SMD LED 0603 | 1.6×0.8×0.60mm Surface Mount LED

Classification	Series	Size (mm)	P/N	Color	Typ. IV (mcd)	Wld (nm) X,Y	VF (V)	IF (mA)
SMD-CHIP	0603(1608)-0.6T	1.60.80.55mm	HQ19-2132SURC	Red	140	620-630	1.8-2.4	20
SMD-CHIP			HQ19-2132UYOC	Orange	100	600-610	1.8-2.4	20
SMD-CHIP			HQ19-2132UYC	Yellow	110	585-595	1.8-2.4	20
SMD-CHIP			HQ19-2132SYGC	yellow green	45	568-574	1.8-2.4	20
SMD-CHIP			HQ19-2132UBGC	Green	650	515-530	2.8-3.6	20
SMD-CHIP			HQ19-2132UBC	Blue	45	460-475	2.5-3.1	5

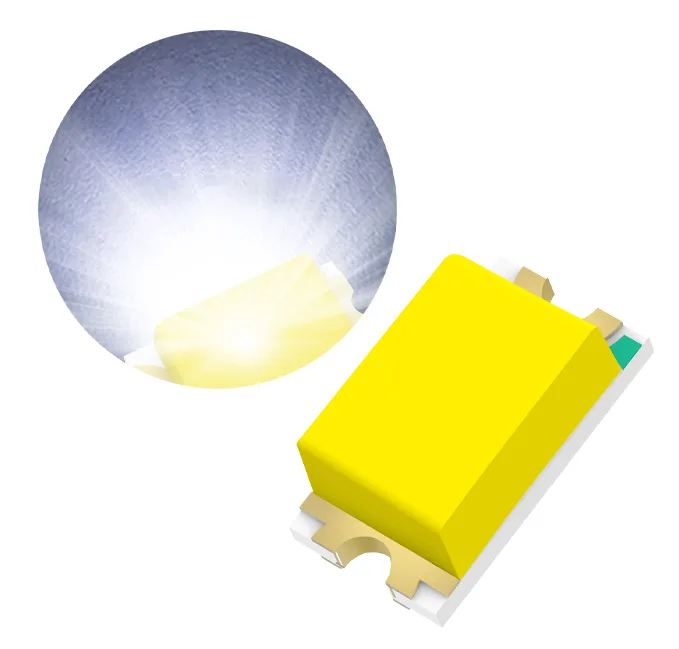

SMD-CHIP			HQ19-2132UWC	white	280	0.26,0.24	2.5-3.1	5

Cooperation Case

Backed by over 20 years of experience, there's nothing our lighting experts haven't seen. Find your specific application below to explore where our extensive lineup of LED products fit into your building.

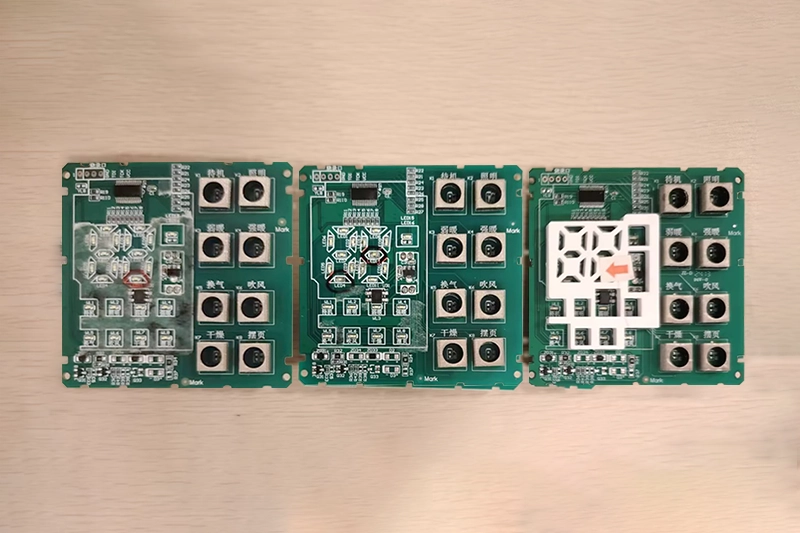

PCB control panel with -40℃~85℃ wide temperature adaptability

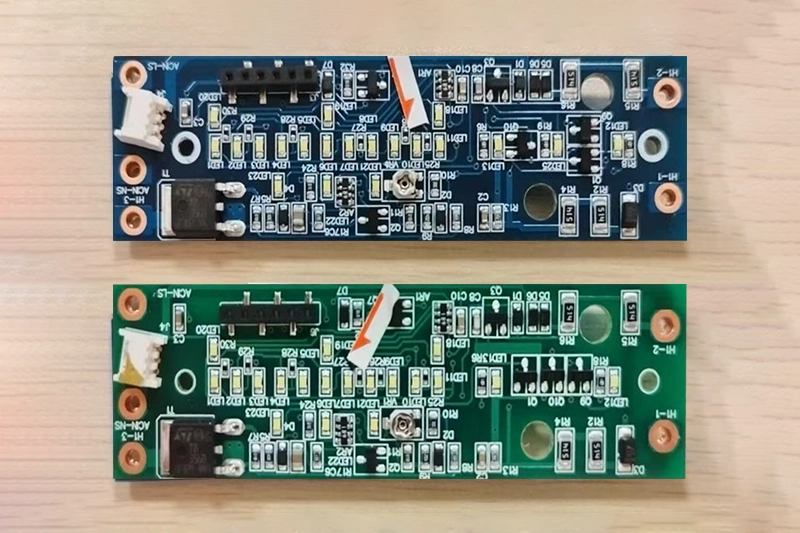

Smart home control panel with HQ19-2101UWC white LED

Packaging

Ultra-miniature 0603(1608)-0.6T industry standard SMD LED package, supplied in tape and reel.

Type	Dimensions (L×W×H)	Empty Box Weight	Capacity
Inner Box	24cm × 20cm × 13cm	0.15kg	Chip LED: Can Hold 10 Tape & Reel Packaging A Box PLCC LED: Can Hold 5-6 Tape & Reel Packaging A Box
Outer Carton	67cm × 26cm × 22cm	0.55kg	Holds 5 Inner Boxs
Medium Outer Carton	40cm × 26cm × 23cm	0.3kg	Holds 3 Inner Boxs
Export Order Box	24cm × 20cm × 9cm	0.1kg	6-7 Tape & Reel

Features

Lens

Water-clear flat molding
Package

Compliant with EIA standard packaging
Certification and Attributes

RoHS compliant, green environmental-friendly product
Moisture Sensitivity Level

Level 3
Compatibility

Suitable for Surface Mount Technology (SMT) assembly and soldering processes
