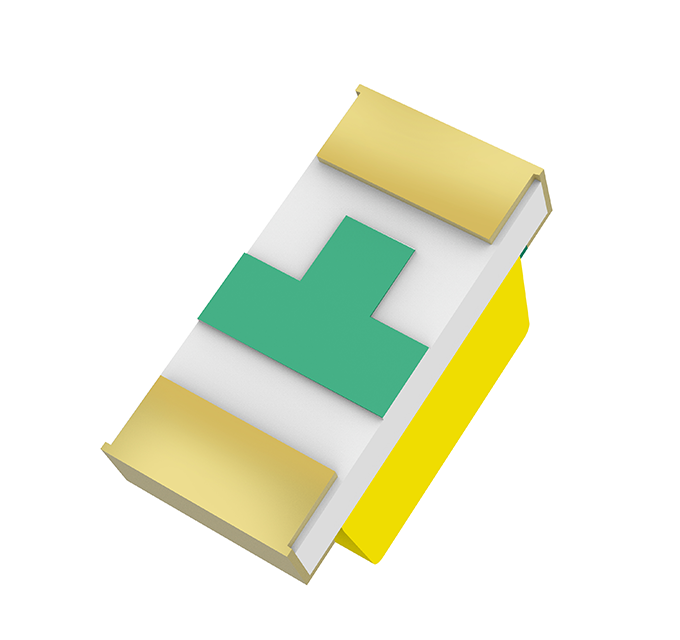

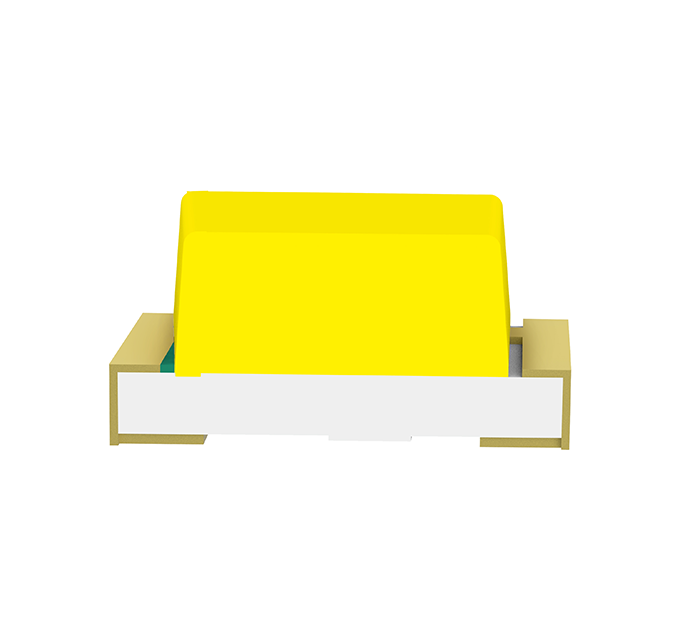

LED SMD 0603(1608)-0.8T | 1.6×0.8×0.8mm Size 0603 Surface Mount Chip LED

LED SMD 0603(1608)-0.8T | 1.6×0.8×0.8mm Size 0603 Surface Mount Chip LED

Specifications:

Place of Origin: China (mainland)
Brand Name: HQG
Certification: ISO9001:2008, ROHS
Part number： 0603(1608)-0.8T
Package Size： 1.6*0.8*0.8 mm

Color:

Red

Orange

Yellow

Yellow Green

Green

Blue

White

Inquiry

Datasheet

Description Model Table Cooperation Case Packaging Features Application

Description

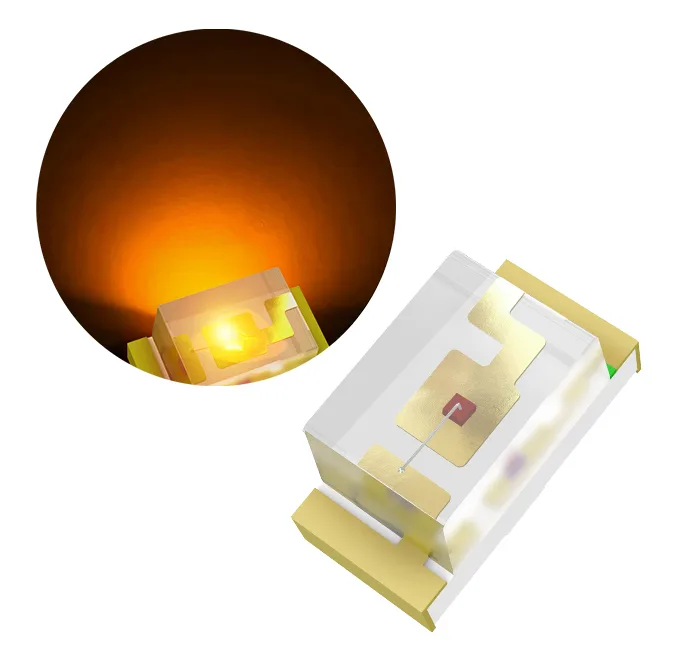

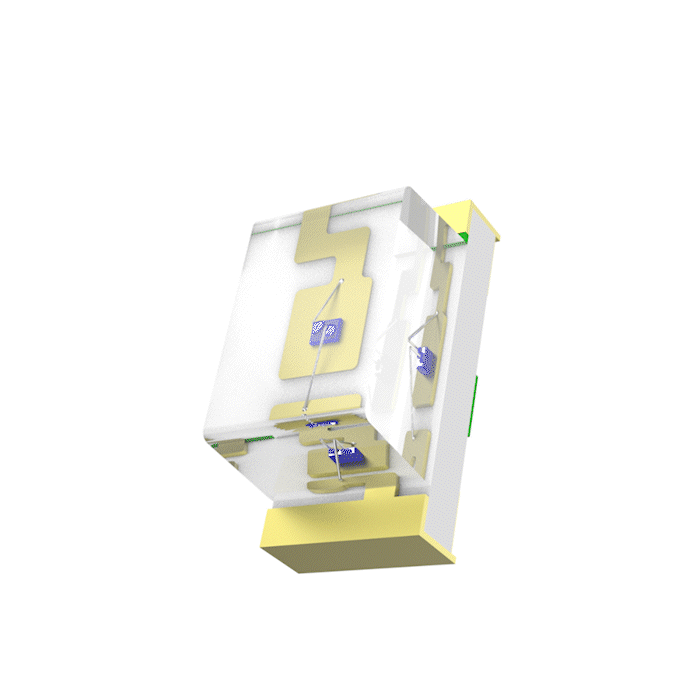

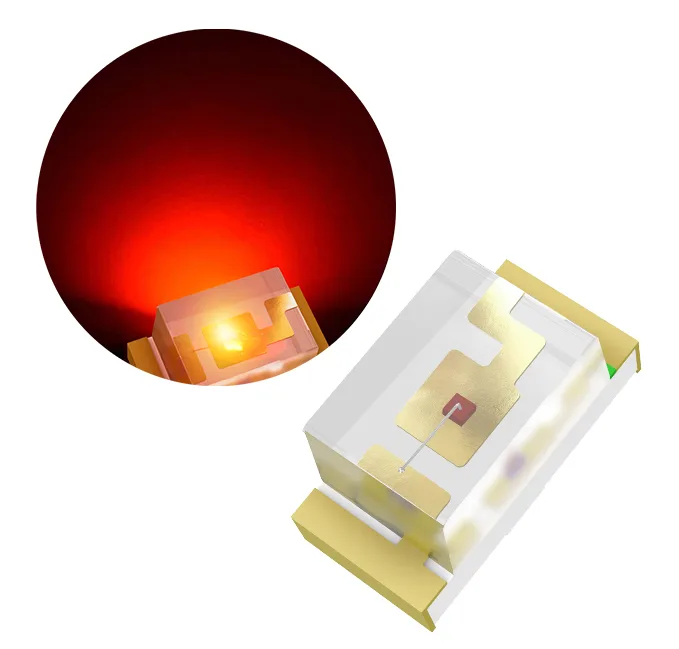

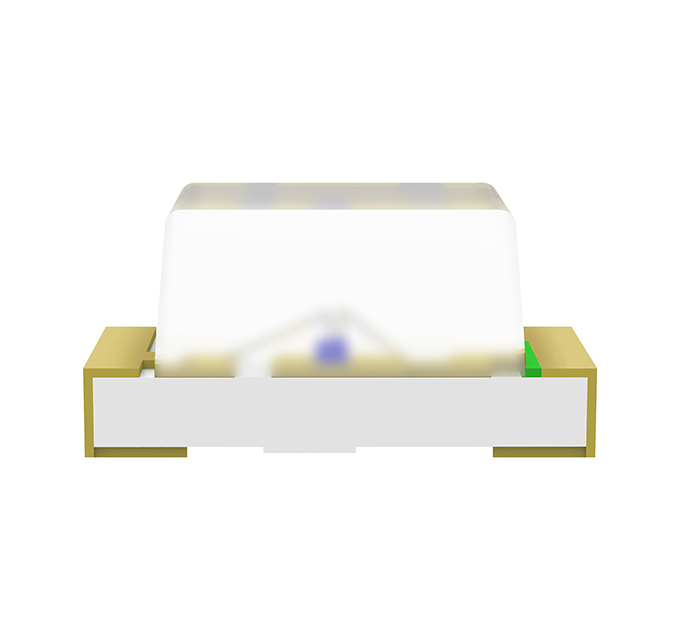

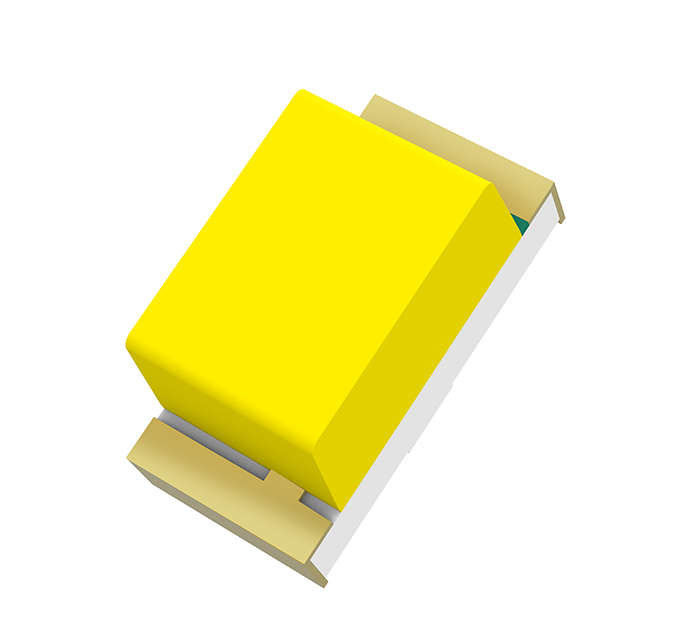

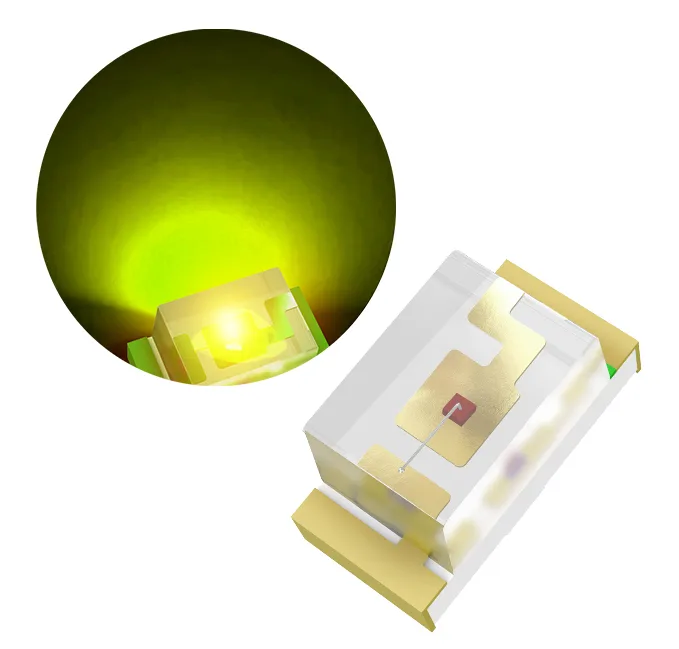

0603(1608)-0.8T SMD LED Chip Top-emitting

1.6×0.8×0.8mm; top-emitting chip with single-color options (Red/Orange/Yellow/Green/Blue/White).The SMD 0603 LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. Ideal for compact indicator lights in smart wearables and home appliances.

Model Table

LED SMD 0603(1608)-0.8T11.6x0.8x0.8mm Size 0603 surface Mount Chip LED

Classification	Series	Size (mm)	P/N	Color	Typ. IV (mcd)	Wld (nm) X,Y	VF (V)	IF (mA)
SMD-CHIP	0603(1608)-0.8T	1.60.80.8 mm	HQ19-2101SURC	Red	140	620-630	1.8-2.4	20
SMD-CHIP			HQ19-2101UYOC	Orange	110	600-610	1.8-2.4	20
SMD-CHIP			HQ19-2101UYC	Yellow	100	585-595	1.8-2.4	20
SMD-CHIP			HQ19-2101SYGC	yellow green	35	568-574	1.8-2.4	20
SMD-CHIP			HQ19-2101UBGC	Green	800	515-530	2.8-3.6	20
SMD-CHIP			HQ19-2101UBC	Blue	45	460-475	2.5-3.1	5
SMD-CHIP			HQ19-2101UWC	white	250	0.26,0.24	2.5-3.1	5

Cooperation Case

Backed by over 20 years of experience, there's nothing our lighting experts haven't seen. Find your specific application below to explore where our extensive lineup of LED products fit into your building.

Smart switch panel with clearly visible status indication

Packaging

Ultra-miniature 0603(1608)-0.8T industry standard SMD LED package, supplied in tape and reel.

Type	Dimensions (L×W×H)	Empty Box Weight	Capacity
Inner Box	24cm × 20cm × 13cm	0.15kg	Chip LED: Can Hold 10 Tape & Reel Packaging A Box PLCC LED: Can Hold 5-6 Tape & Reel Packaging A Box
Outer Carton	67cm × 26cm × 22cm	0.55kg	Holds 5 Inner Boxs
Medium Outer Carton	40cm × 26cm × 23cm	0.3kg	Holds 3 Inner Boxs
Export Order Box	24cm × 20cm × 9cm	0.1kg	6-7 Tape & Reel

Features

Lens

Water-clear flat molding
Package

Compliant with EIA standard packaging
Certification and Attributes

RoHS compliant, green environmental-friendly product
Moisture Sensitivity Level

Level 3
Compatibility

Suitable for Surface Mount Technology (SMT) assembly and soldering processes
