HQG 0603(1608)-0.4T Notched Series LED | 1.6×0.8×0.4mm Surface Mount LED

HQG 0603(1608)-0.4T Notched Series LED | 1.6×0.8×0.4mm Surface Mount LED

Specifications:

Place of Origin: China (mainland)
Brand Name: HQG
Certification: ISO9001:2008, ROHS
Part number：0603(1608)-0.4T
Package Size：1.6×0.8×0.4mm

Color:

Red

Orange

Yellow

Yellow Green

Green

Blue

White

Inquiry

Datasheet

Description Model Table Cooperation Case Packaging Features Application

Description

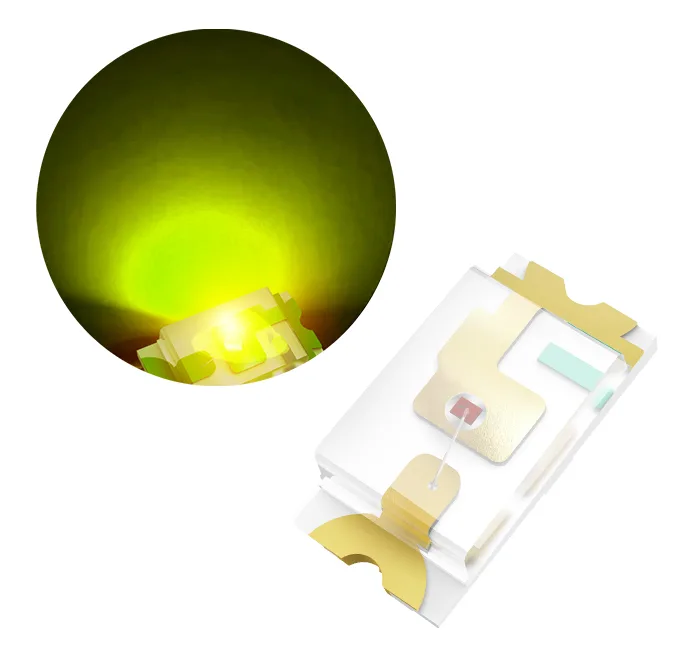

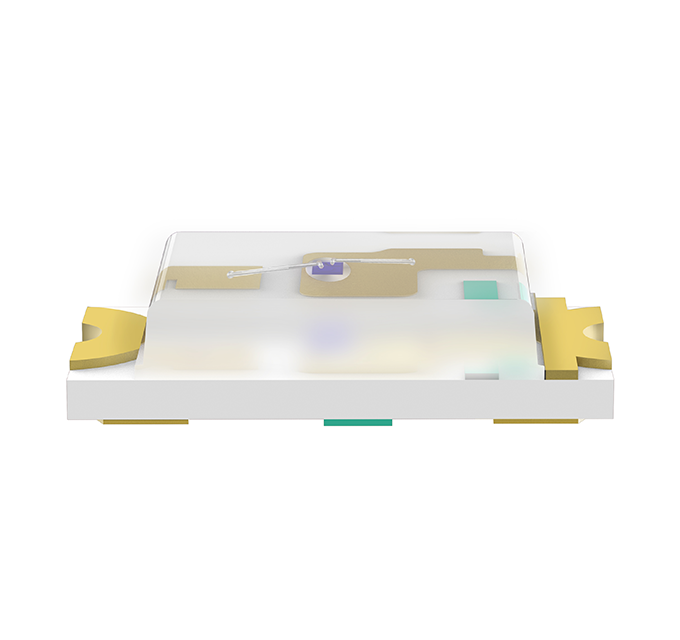

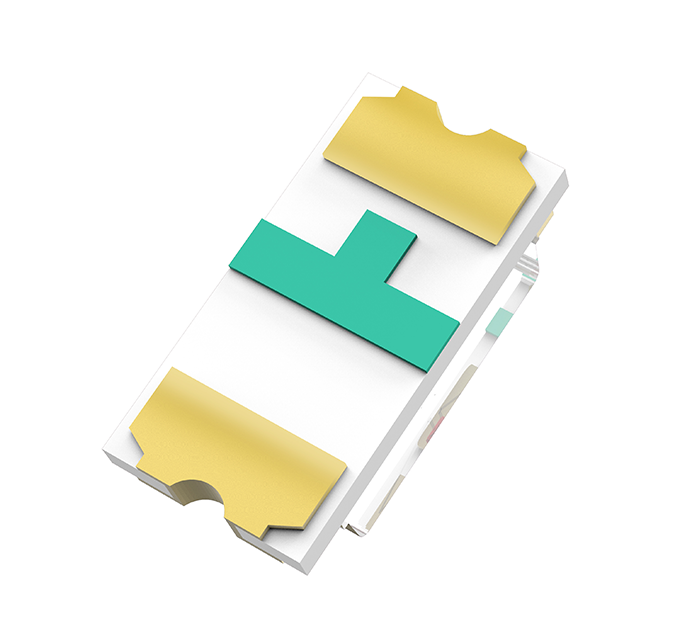

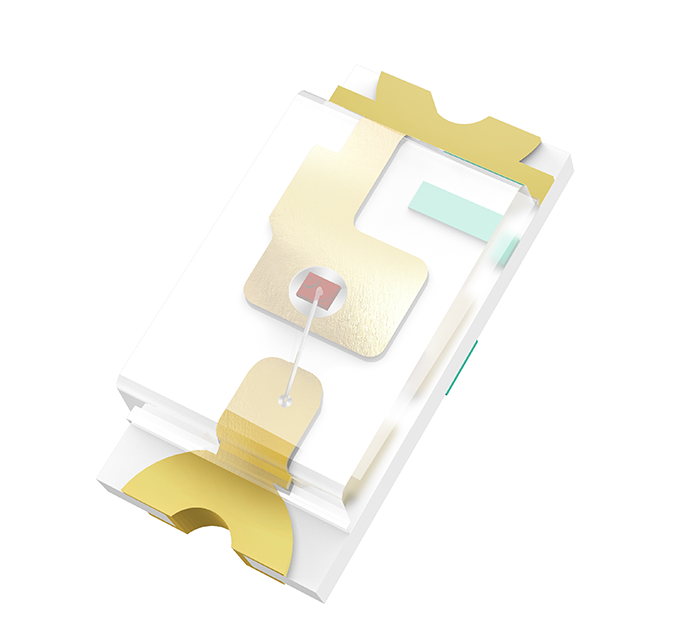

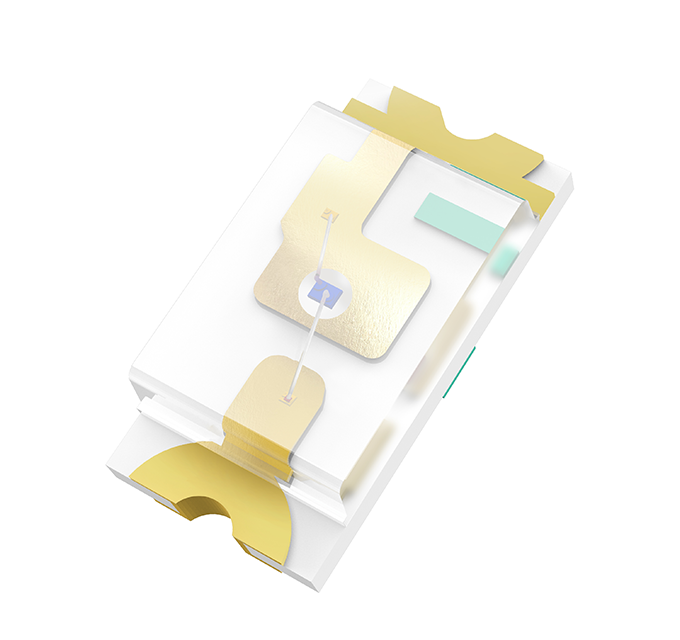

HQG 0603(1608)-0.4T Notched Series LED 0603 SMD

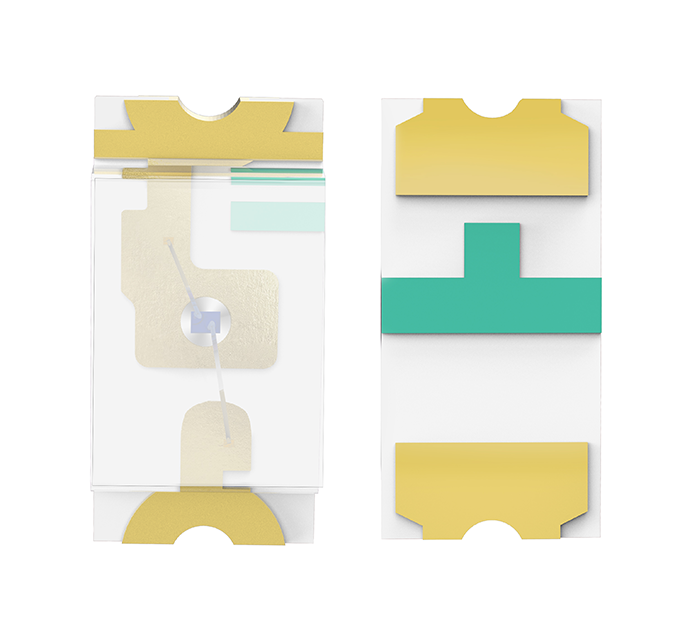

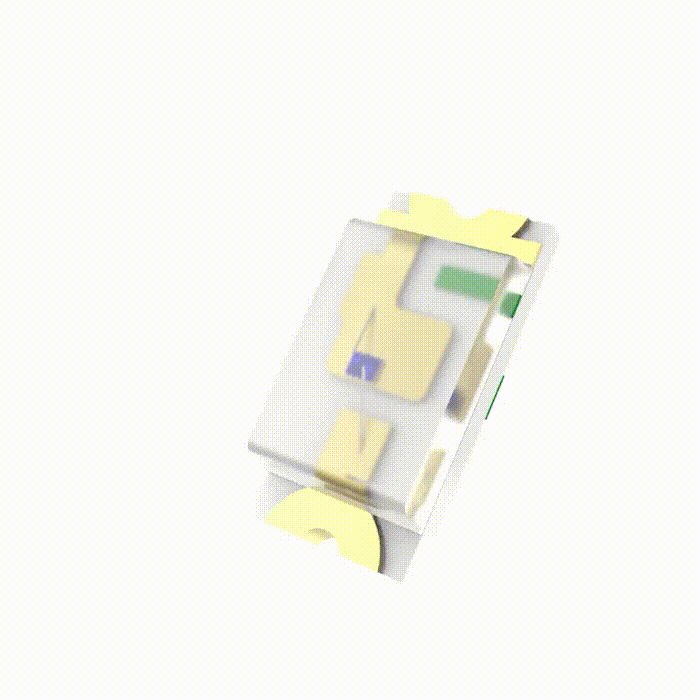

HQG 0603(1608)-0.4T Notched Series LED features an anti-misalignment notch design for precision mounting, ensuring accuracy in surface mounting processes. As a high-performance SMD 0603 surface mount LED, it adopts a top-emitting solution and offers monochrome options (Red/Orange/Yellow/Yellow Green/Green/Blue/White) to meet diverse indicator application needs.

Fully compatible with automatic placement equipment for enhanced productivity. This 0603 (1608) LED is RoHS-compliant, significantly smaller than lead frame components—enabling reduced board size, higher packing density, and storage optimization for miniaturized devices. Its lightweight design makes it ideal for miniature applications, including automotive dashboard/switch backlighting, telecommunication indicators (phones/faxes), LCD flat backlighting, and general lighting, providing reliable light efficiency for your products.

Model Table

HQG 0603(1608) Notched Series LED 0603 SMD | 1.6×0.8×0.4mm Surface Mount LED

Classification	Series	Size (mm)	P/N	Color	Typ. IV (mcd)	Wld (nm) X,Y	VF (V)	IF (mA)

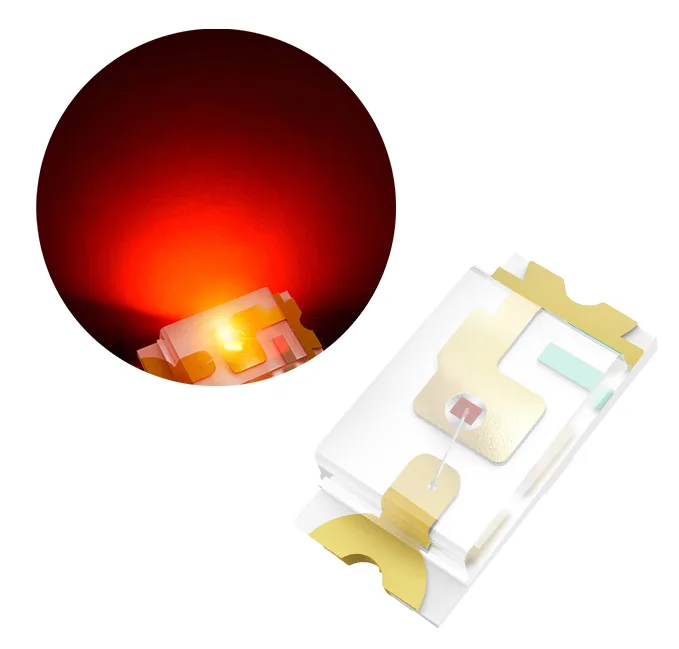

SMD-CHIP	0603(1608)-0.4T Notched Series LED	1.6x0.8x0.4mm	HQ19-2152SURC	Red	140	620-630	1.8-2.4	20
SMD-CHIP			HQ19-2152UYOC	Orange	35	600-610	1.8-2.2	5
SMD-CHIP			HQ19-2152UYC	Yellow	35	585-595	1.8-2.2	5
SMD-CHIP			HQ19-2152SYGC	yellow green	15	568-574	1.8-2.2	5
SMD-CHIP			HQ19-2152UBGC	Green	300	515-530	2.5-3.0	5

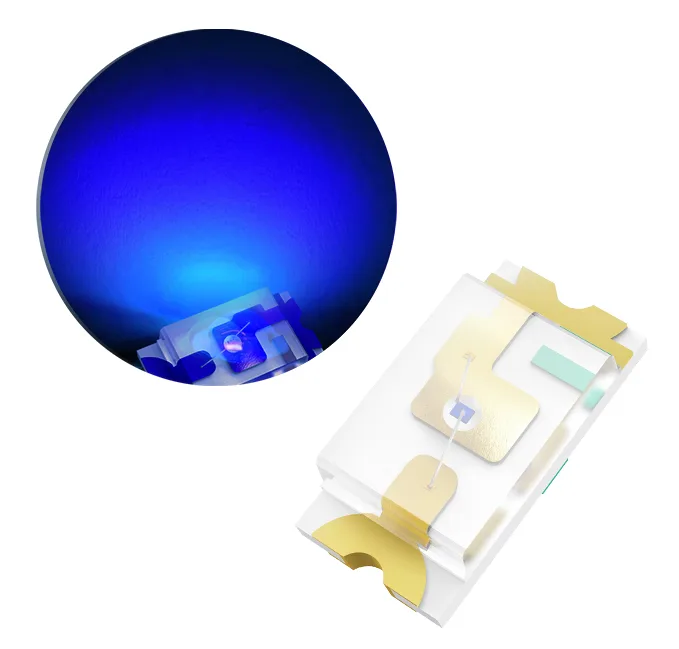

SMD-CHIP			HQ19-2152UBC	Blue	50	460-475	2.5-3.0	5

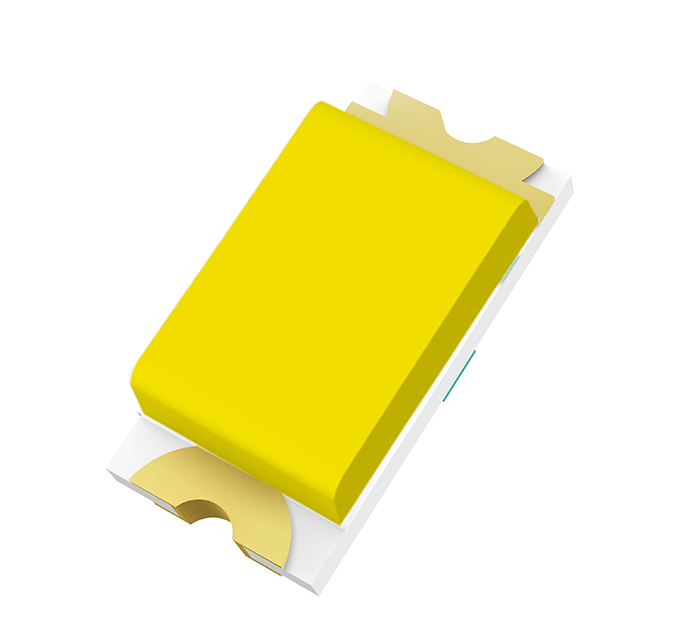

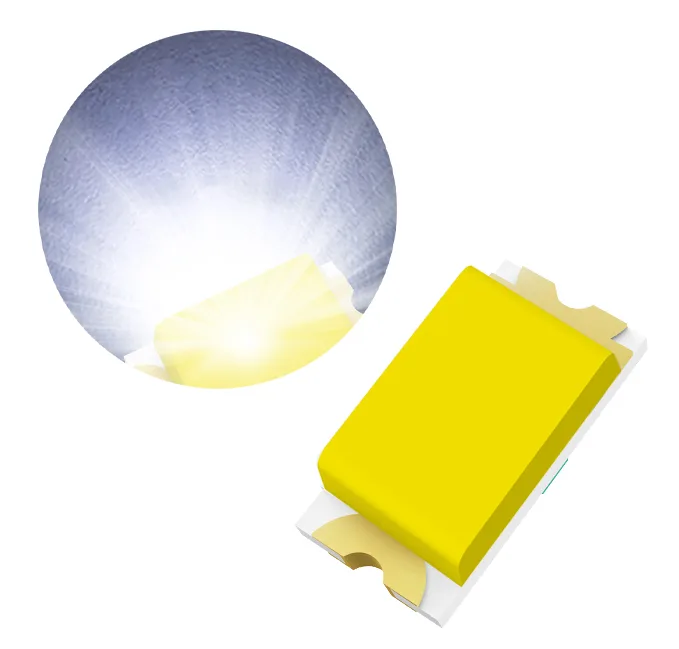

SMD-CHIP			HQ19-2152UWC	white	280	0.26,0.24	2.5-3.0	5

Cooperation Case

Backed by over 20 years of experience, there's nothing our lighting experts haven't seen. Find your specific application below to explore where our extensive lineup of LEDs fit into your product.

Lamp panel integrated light source with uniform planar illumination

Packaging

Ultra-miniature 0603(1608)-0.4T Notched Series LED industry standard SMD LED package, supplied in tape and reel.

Type	Dimensions (L×W×H)	Empty Box Weight	Capacity
Inner Box	24cm × 20cm × 13cm	0.15kg	Chip LED: Can Hold 10 Tape & Reel Packaging A Box PLCC LED: Can Hold 5-6 Tape & Reel Packaging A Box
Outer Carton	67cm × 26cm × 22cm	0.55kg	Holds 5 Inner Boxs
Medium Outer Carton	40cm × 26cm × 23cm	0.3kg	Holds 3 Inner Boxs
Export Order Box	24cm × 20cm × 9cm	0.1kg	6-7 Tape & Reel

Features

Lens

Water-clear flat molding
Package

Compliant with EIA standard packaging
Certification and Attributes

RoHS compliant, green environmental-friendly product
Moisture Sensitivity Level

Level 3
Compatibility

Suitable for Surface Mount Technology (SMT) assembly and soldering processes
