1616-0.4T Automotive Lighting Series | 1.6×1.6×0.4mm Surface Mount LED

1616-0.4T Automotive Lighting Series | 1.6×1.6×0.4mm Surface Mount LED

Specifications:

Place of Origin: China (mainland)
Brand Name: HQG
Certification: ISO9001:2008, ROHS
Part number：1616-0.4T
Package Size：1.6×1.6×0.4mm

Color:

RGB Color

Inquiry

Datasheet

Description Model Table Cooperation Case Packaging Features Application

Description

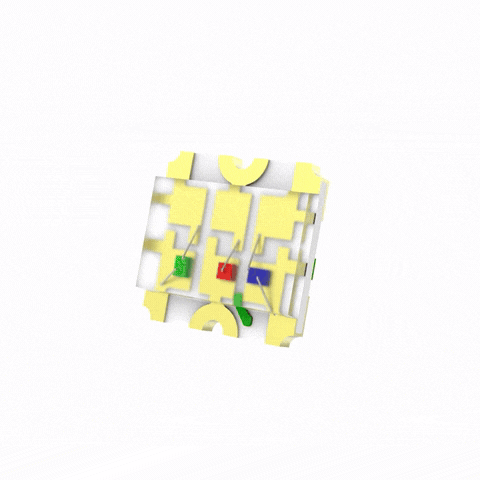

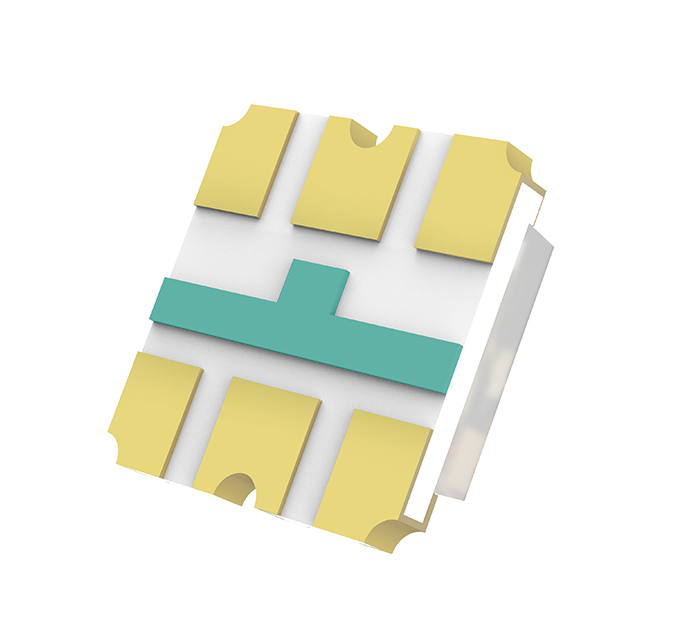

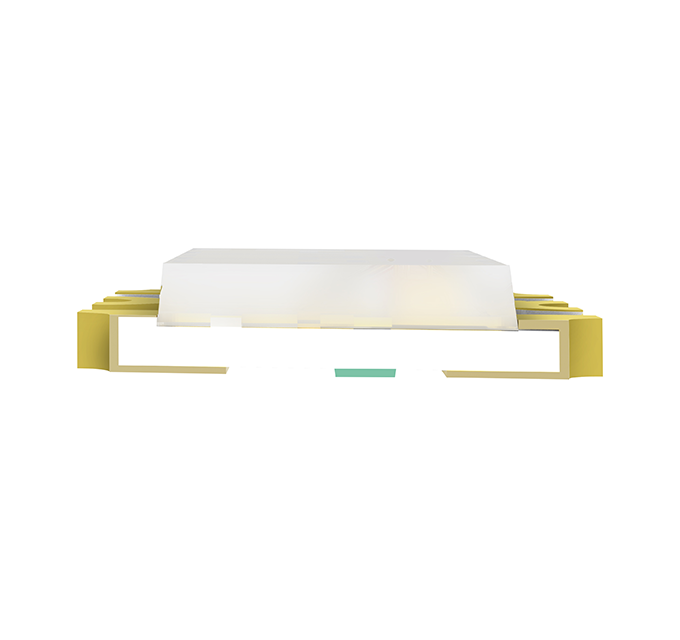

1616-0.4T Automotive Lighting Series SMD LED

HQG LED 1616-0.4T Automotive Lighting Series SMD LED features 1.6×1.6×0.4mm ultra-miniature automotive-grade package, certified to automotive standards (-40℃~+105℃ operating temperature). Integrating Red/Green/Blue trichromatic emitting units ±120° wide-angle uniform light emission and ≤2% color purity deviation Compatible with 12V automotive electronic systems, ideal for in-vehicle ambient lighting, instrument panel indicators, and turn signal lights. Compatible with ultra-small component mounting process, supporting high-speed SMT production line operation. Certified by ISO/TS 16949 automotive quality management system, providing 50,000-hour guarantee.

Model Table

Automotive LED | 1616-0.4T Full-Color SMD Chip LED

Classification	Series	Size (mm)	P/N	Color	Typ. IV (mcd)	Wld (nm) X,Y	VF (V)	IF (mA)
SMD-CHIP	1616-0.4T	1.6x1.6x0.4mm	HQ18-2352RGBC	Red	35	620-630	1.8-2.4	5
SMD-CHIP				Green	260	515-530	2.5-3.2
SMD-CHIP				Blue	30	460-475	2.5-3.2

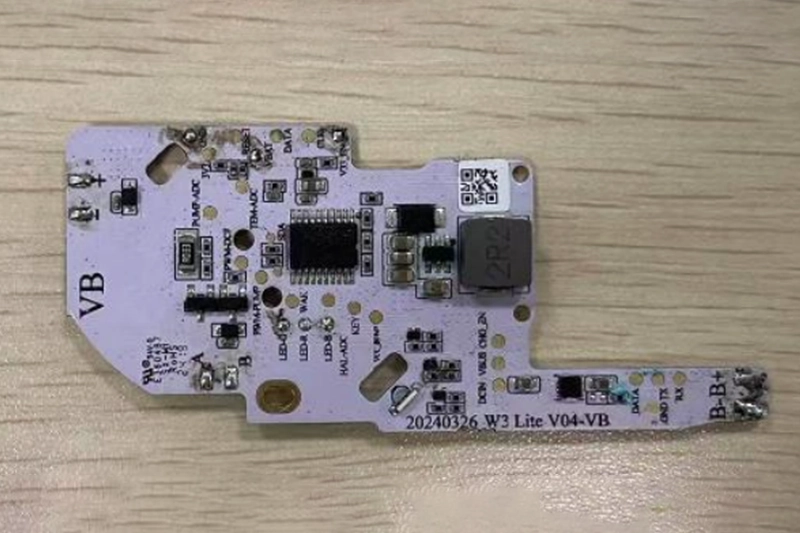

Cooperation Case

Backed by over 20 years of experience, there's nothing our lighting experts haven't seen. Find your specific application below to explore where our extensive lineup of LEDs fit into your product.

Off-road vehicle light with dustproof housing

Packaging

Ultra-miniature 1616-0.4T industry standard SMD LED package, supplied in tape and reel.

Type	Dimensions (L×W×H)	Empty Box Weight	Capacity
Inner Box	24cm × 20cm × 13cm	0.15kg	Chip LED: Can Hold 10 Tape & Reel Packaging A Box PLCC LED: Can Hold 5-6 Tape & Reel Packaging A Box
Outer Carton	67cm × 26cm × 22cm	0.55kg	Holds 5 Inner Boxs
Medium Outer Carton	40cm × 26cm × 23cm	0.3kg	Holds 3 Inner Boxs
Export Order Box	24cm × 20cm × 9cm	0.1kg	6-7 Tape & Reel

Features

Lens

Water-clear flat molding
Package

Compliant with EIA standard packaging
Certification and Attributes

RoHS compliant, green environmental-friendly product
Moisture Sensitivity Level

Level 3
Compatibility

Suitable for Surface Mount Technology (SMT) assembly and soldering processes
